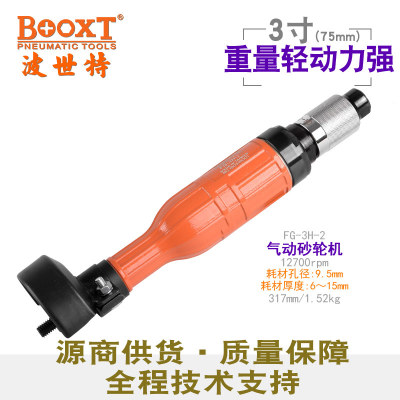

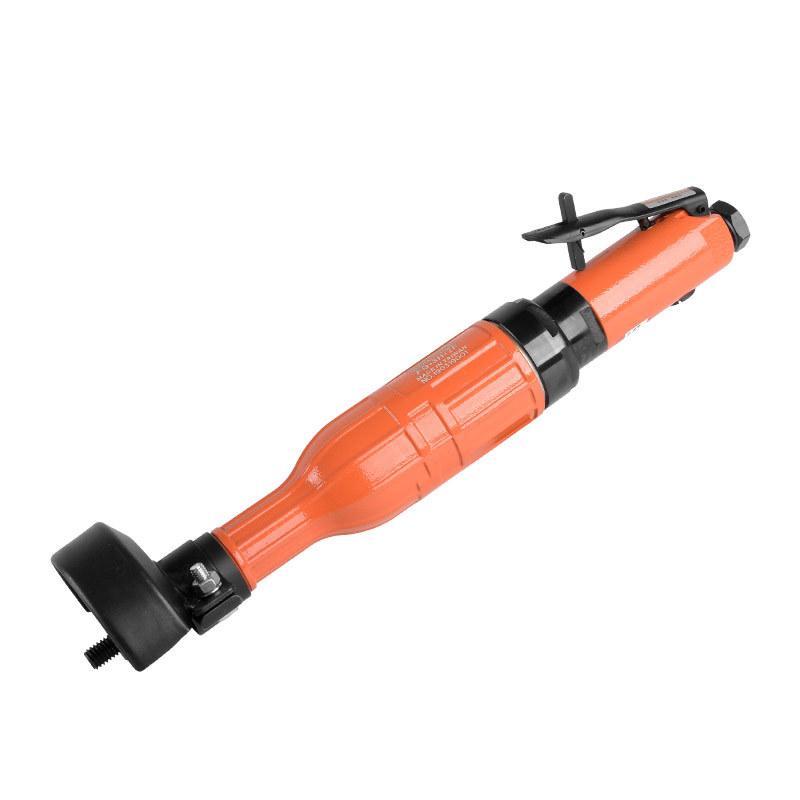

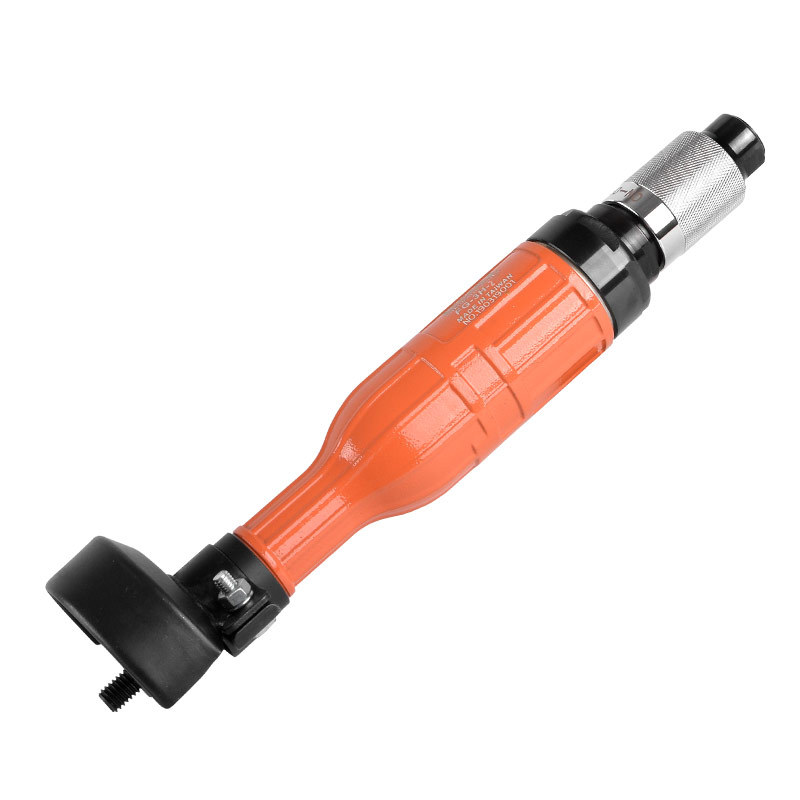

Imported No Order No. FG-3H-2 Brand BOOXT

Model FG-3H-2, FG-3H-2F Article No. FG-3H-2 Classification Disc pneumatic grinder

Place of Origin Taiwan, China Chuck size 75*13*9.5 (mm) Grinding wheel size 75*13*9.5 (mm)

Air consumption 0.55m3/min No-load speed 12700 (rpm) Air inlet size 1/4 (inch)

It is recommended that the inner diameter of the trachea is 10 (mm) and the working pressure is 0.65 (Mpa). Purpose (applicable industries) Grinding and polishing

Tool length 317 (mm) Applicable scope Grinding, polishing External dimensions 317

Disc diameter 3 inches Average air consumption 0.55m3/min Suitable for polishing wheels Polishing wheels with inner hole 9.5mm and thickness 6-15mm

Net weight of the tool 1.52 (kg) Whether it is a special supply source for cross-border export? No Series FG-3H-2
