Order number 05442 Item No. 05442

Model PL Type Metal Connector

Material Copper-plated nickel Scope of application Pneumatic temperature resistance 60 (°C)

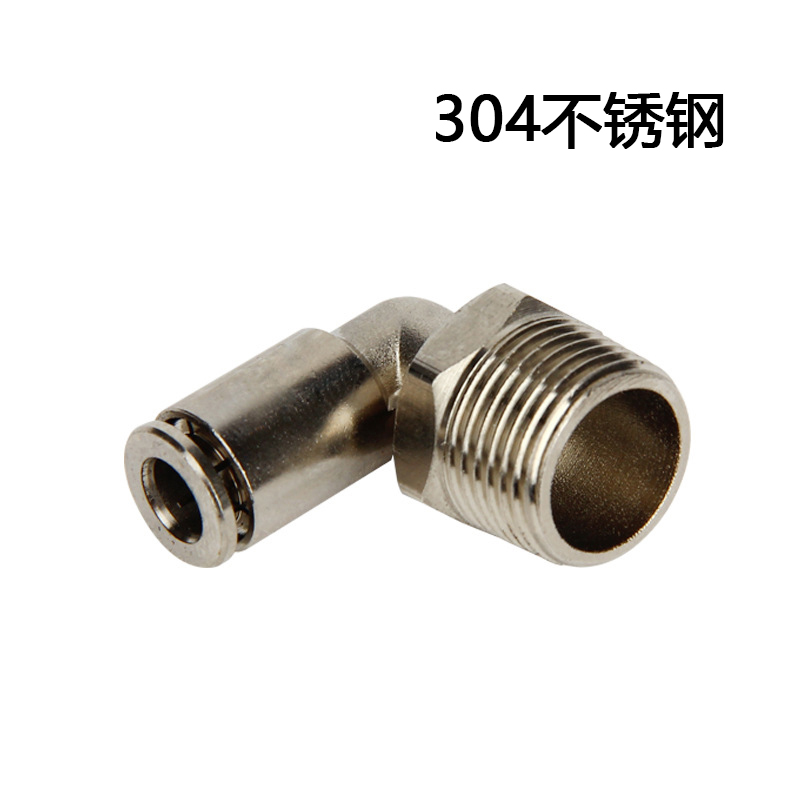

Withstand voltage 1 (MPa) Installation form 4-M5 (takes 4 threads M5), 4-01 (takes 4 threads 1 minute), 4-02 (takes 4 threads 2 points), 6-M5 (takes 6 threads M5), 6-01 (takes 6 threads 1 minute), 6-02 (takes 6 threads 2 points), 6-03 (takes 6 threads 3 points), 6-04 (takes 6 threads 4 points), 8-01 (takes 8 Thread 1 point), 8-02 (takes 8 threads 2 points), 8-03 (takes 8 threads 3 points), 8-04 (takes 8 threads 4 points), 10-01 (takes 10 threads 1 minute), 10 -02 (takes 10 threads 2 points), 10-03 (takes 10 threads 3 points), 10-04 (takes 10 threads 4 points), 12-01 (takes 12 threads 1 minute), 12-02 (takes 12 threads) 2 points), 12-03 (takes 12 threads and 3 points), 12-04 (takes 12 threads and 4 points), 14-03 (takes 14 threads and 3 points), 14-04 (takes 14 threads and 4 points), 16- 02 (takes 16 threads and 2 points), 16-03 (takes 16 threads and 3 points), 16-04 (takes 16 threads and 4 points), 16-06 (takes 16 threads and 6 points). The diameter of the pipe is copper-nickeled joint PL. 304 stainless copper joint PL, 316 stainless copper joint PL (mm)

Product Name: All copper quick insert

Features: High pressure resistance, used on PU tube nylon tube.

Copper, corrosion resistant and durable

Thread is G thread / BSPP thread

The surface of this product has been nickel-plated to adapt to corrosion-resistant fluids. Internal seals are divided into: general seals. 1: Commonly used as nitrile rubber. 2: Fluorine-sealed seals. Corrosion resistance and high temperature resistance are very good. Ordering The usage can be described for the selection.

Install matching specifications:

Thread code: G RC PT NPT M

Chinese code: pipe thread cone pipe thread US 60 degree fine teeth American taper thread Metric thread 60 degrees

Thread size: 1/8-28 1/4-19 3/8-19 1/2-14 3/4-14

Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
