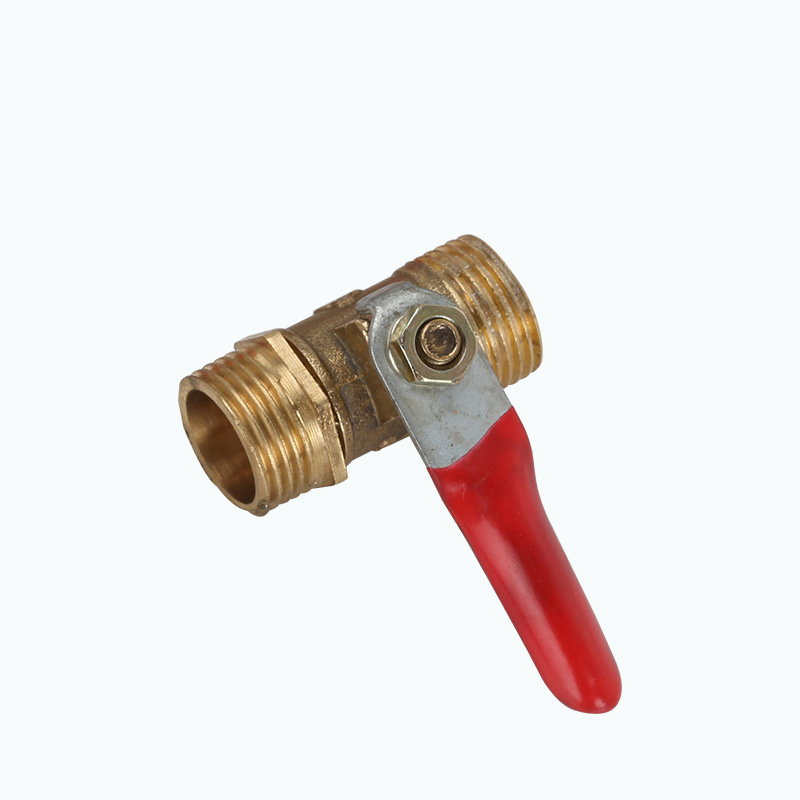

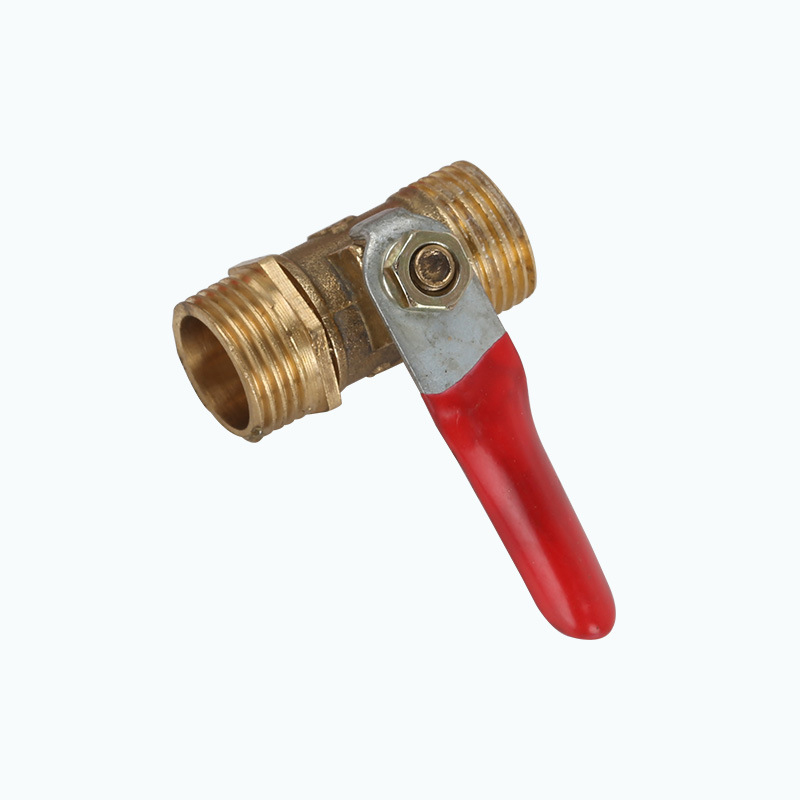

Order number 02544 Processing customization No Item No. 02544

Model Ball Valve Double Outer Material Brass

Connection type Thread Nominal diameter 8 (mm) Seal type Soft seal type

Pressure environment normal pressure working temperature normal temperature standard national standard

Flow direction two-way shape ball parts and accessories accessories

Type (channel position) Right angle Applicable medium Air Use Cutoff

Specifications Double outer 1/8 01, double outer 1/4 02, double outer 3/8 03, double outer 1/2 04, pagoda double head Ф 6, pagoda double head Ф 8, pagoda double head Ф 10, pagoda double head Ф 12, double 1/8 01, double inner 1/4 02, double inner 3/8 03, double inner 1/2 04, inside and outside 1/8 01, inside and outside 1/4 02, inside and outside 3/8 03, inside and outside 1/2 04

Name: Double inner copper ball valve

  Specifications: 2 points DN8-2.5 inch DN65

  Material: brass

  Nominal pressure: 1.6MPa

  Working medium: water, gas, natural gas, etc.

  Working temperature: -20 °C ≤ t ≤ 110 ° C

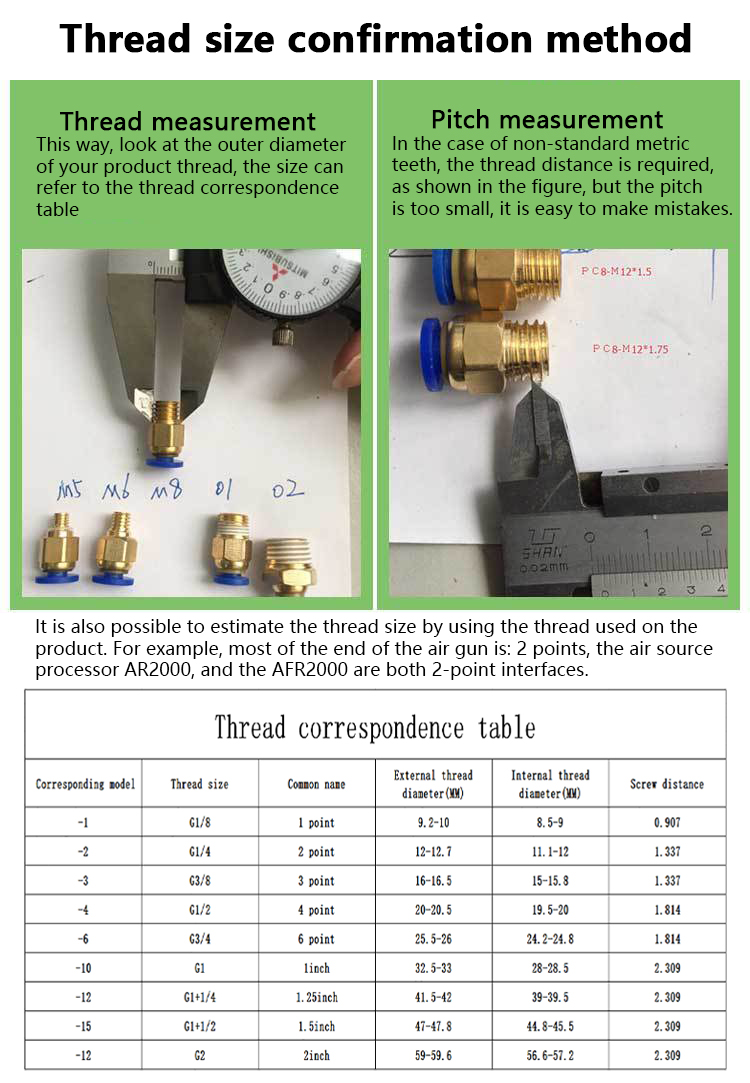

  Pipe thread conforms to ISO228 standard
