Order number 02548 Item No. 02548

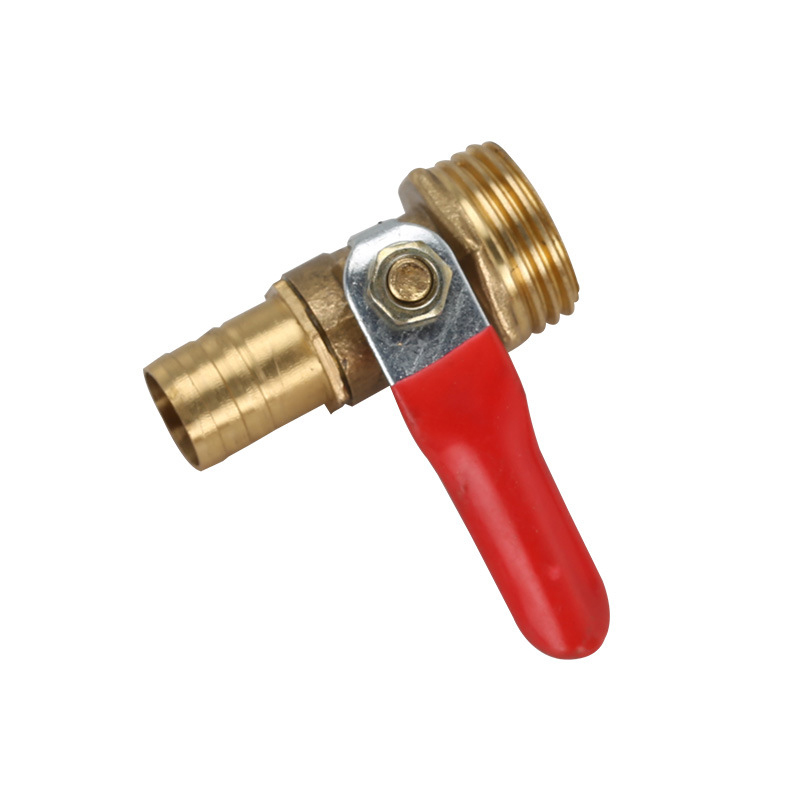

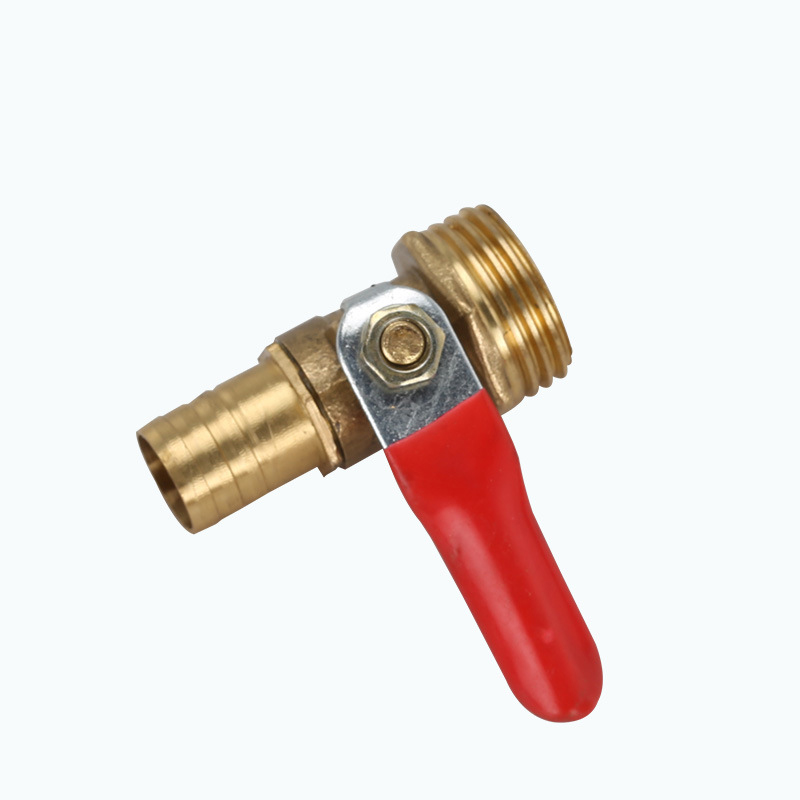

Model Ball Valve External Screw Material Brass

Connection type Thread Nominal diameter 8 (mm) Seal type Soft seal type

Pressure environment normal pressure working temperature normal temperature standard national standard

Flow direction two-way shape ball parts and accessories accessories

Type (channel position) Right angle Applicable medium Air Use Cutoff

Specifications 1/4-6, 1/4-8, 1/4-10, 3/8-8, 3/8-10, 1/2-8, 1/2-10, 1/2-12

Corresponding model: Thread size: Commonly used thread diameter

-01 G1/8 1 point about 9.5-10MM

-02 G1/4 2 points about 12-12.5MM

-03 G3/8 3 points Approximately 16-16.2MM

-04 G1/2 4 points about 20-20.3MM

-06 G3/4 6 points About 25.5-25.8MM

Name: Double inner copper ball valve

Specifications: 2 points DN8-2.5 inch DN65

Material: brass

Nominal pressure: 1.6MPa

Working medium: water, gas, natural gas, etc.

Working temperature: -20 °C ≤ t ≤ 110 ° C

Pipe thread conforms to ISO228 standard
