Order number 00027 Item No. 00027

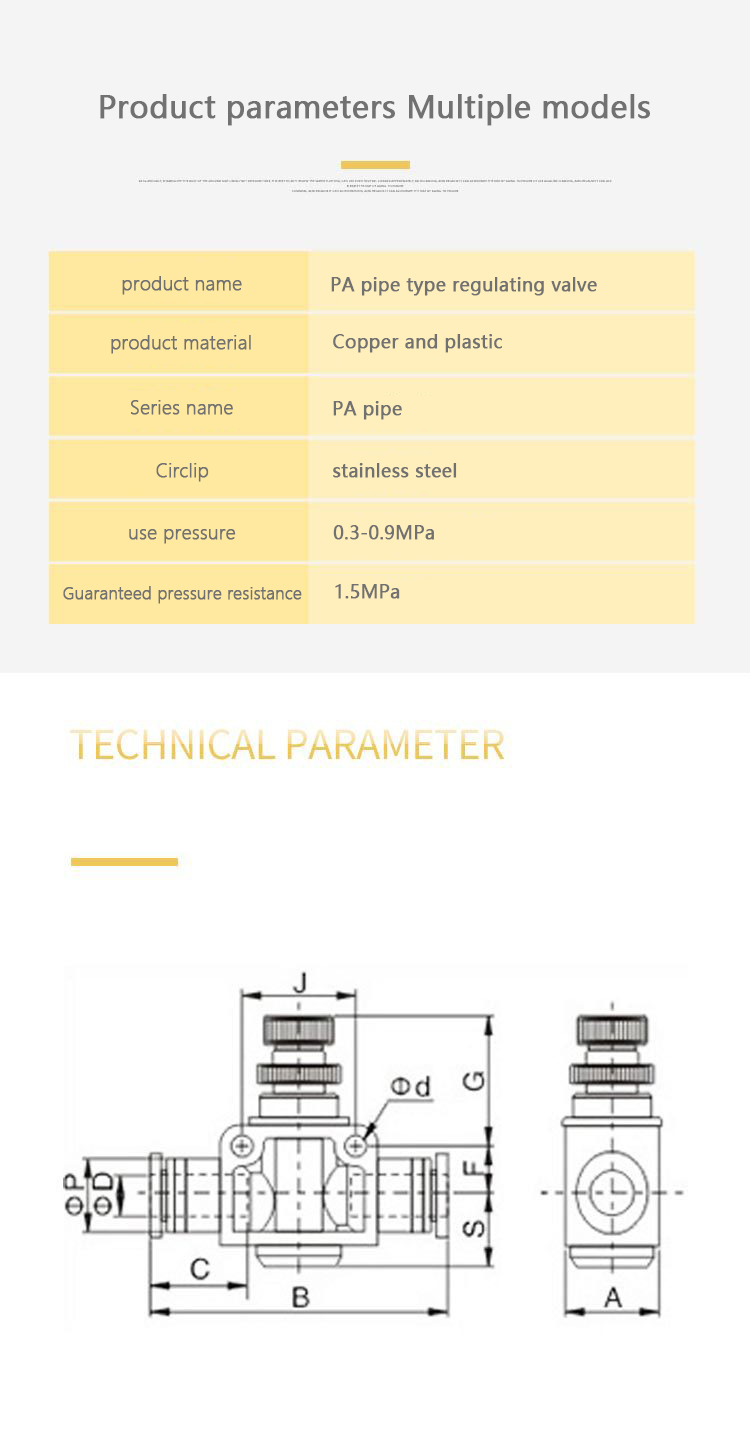

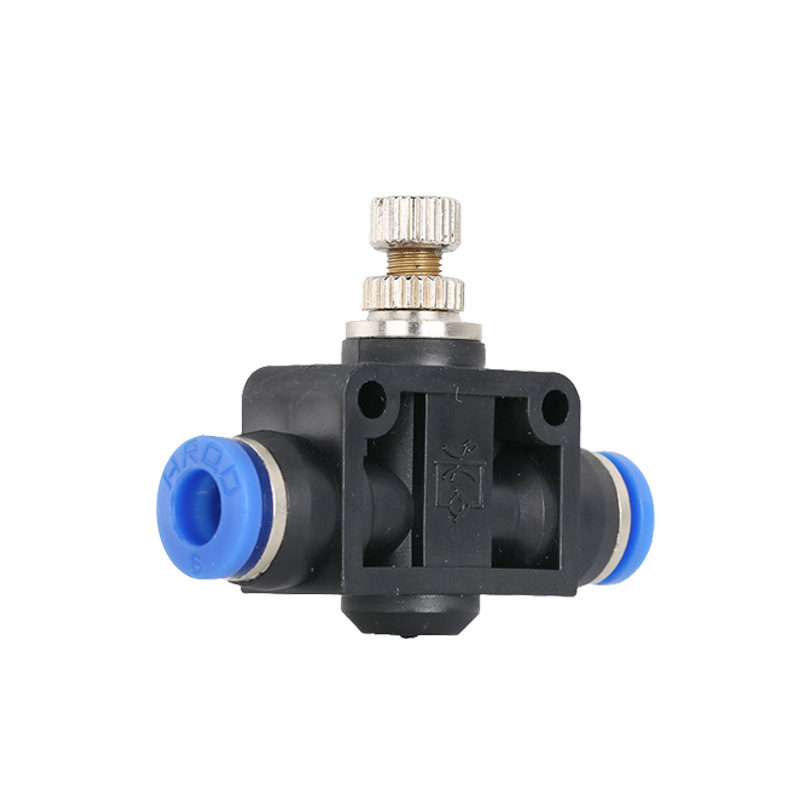

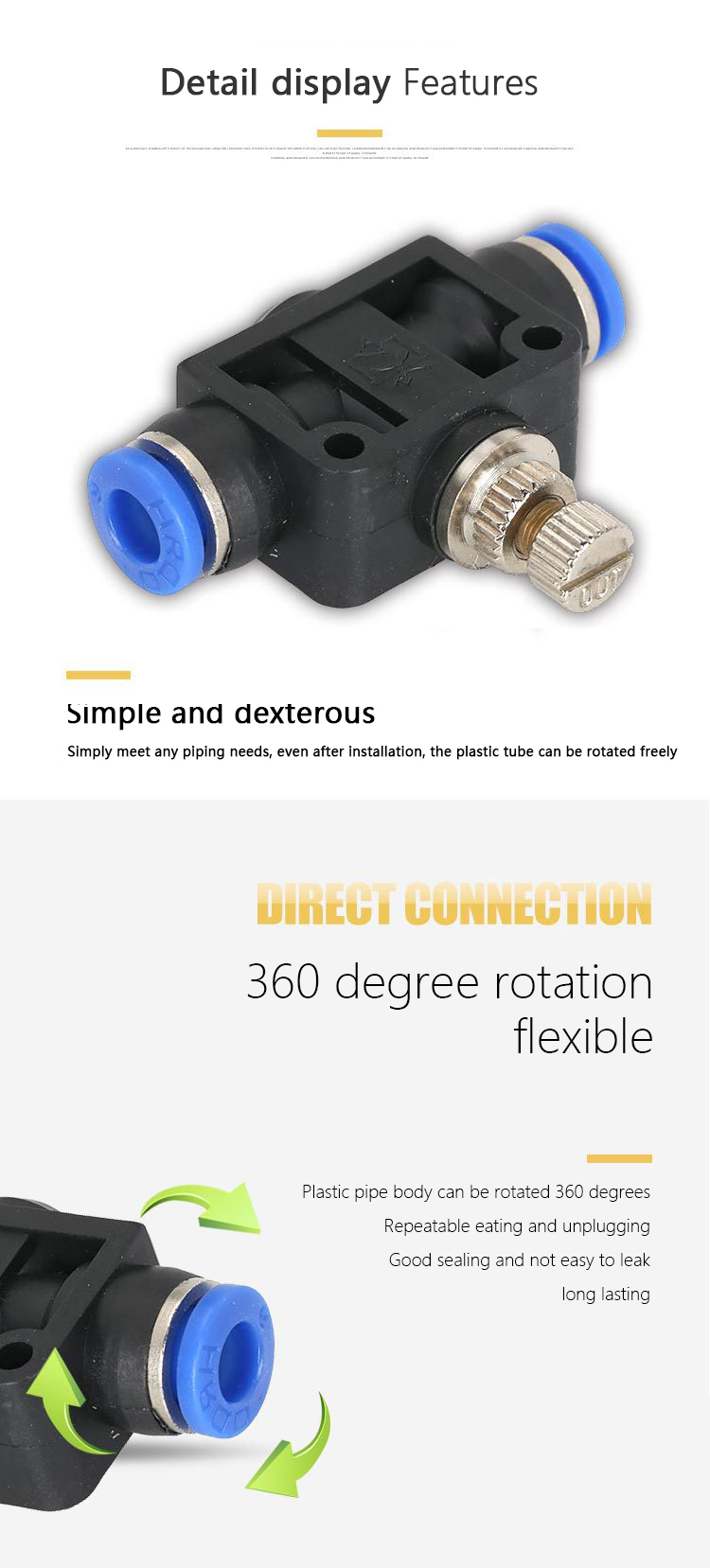

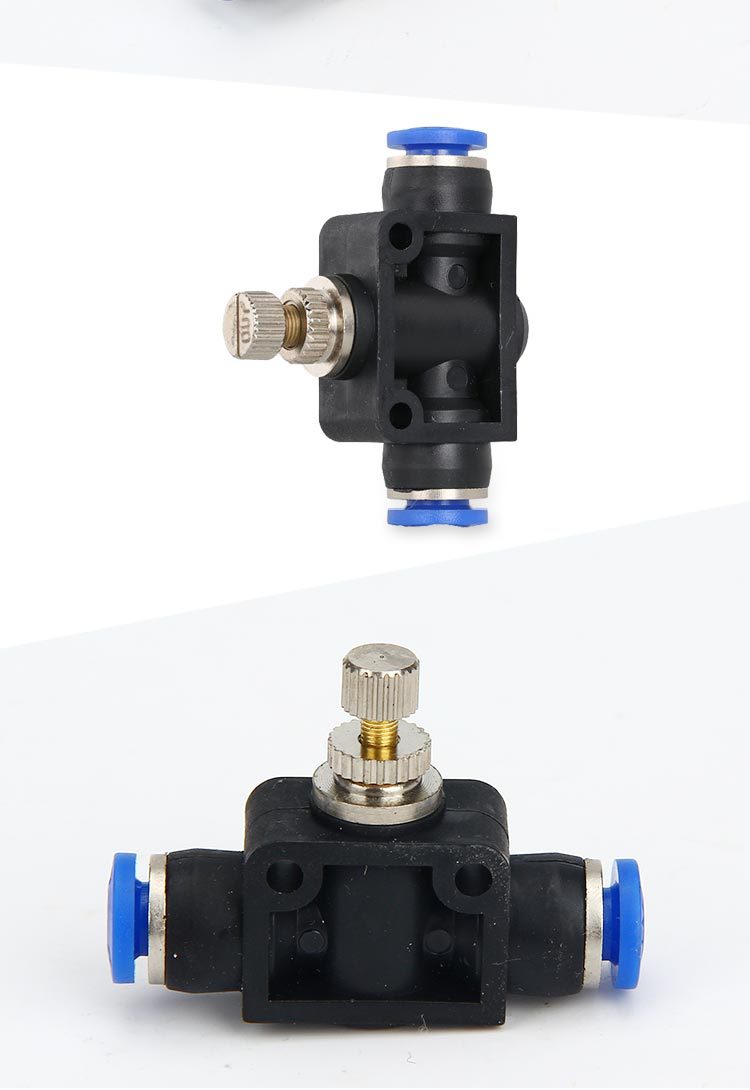

Model HPA Type Quick Connector

Material Copper, plastic Scope PU tube Temperature resistance 0-70 (°C)

Pressure resistance 0-1 (MPa) Installation form Plug and play The diameter of the nozzle is 4 centimeters, 6 centimeters, 8 centimeters, 10 centimeters, 12 centimeters (mm)

Use fluid: clean compressed air, vacuum

Maximum use pressure: 1.32MPA

Pressure range: 0-90MPA

Environment and fluid temperature: 0-60 degrees Celsius

Use hose: PU hose, nylon tube

Ordering reference:

LPC 8 - 02

Serial number tracheal outer diameter thread form

LPL 4 01:1/8

LPB 6 02:1/4

LPD LPX LPCF 8 03:3/8

LPM 10 04:1/2

LPU 12

LPE 14

LPV 16

LPY

LPXL

LPK

LPG

LPEN

LPEND

LPY LPWG

note:

Do not use in fluids other than air or water (which can be used in mechanical and custom production)

If it is used in a place where it is produced as a flower, it may cause a fire, so it is forbidden to use it in such a place.

If it is used in hot water above 60 degrees Celsius, the resin may be damaged due to heat and hydrolysis, so it is forbidden to use in this case.

Our products cannot be used in places with static electricity

Do not use the external load (bending, twisting, pulling) on ​​the pipe joint, otherwise it may cause damage or leakage.

If you use a non-company's trachea product, it may cause leakage or abnormal connection and disassembly due to the tolerance of the trachea, so be sure to check whether the outer diameter meets the dimensions of the following table.

Specifications PU tube Nylon tube

4MMM +-0.1 +-0.08

6MM +-0.12 +-0.1

8MM +-0.12 +-0.1

10MM +-0.15 +-0.12

12MM +-0.15 +-0.12

16MM +-0.15 +-0.16

Check to see if the end face of the trachea is cut at right angles. Is there any damage or scratches outside the trachea? When connecting the trachea, please refer to the following. The product of the company will feel 2 pieces when inserting the trachea into the pipe joint. The segment is the locking part, the second segment is the sealing ring part, which must be inserted into the second paragraph

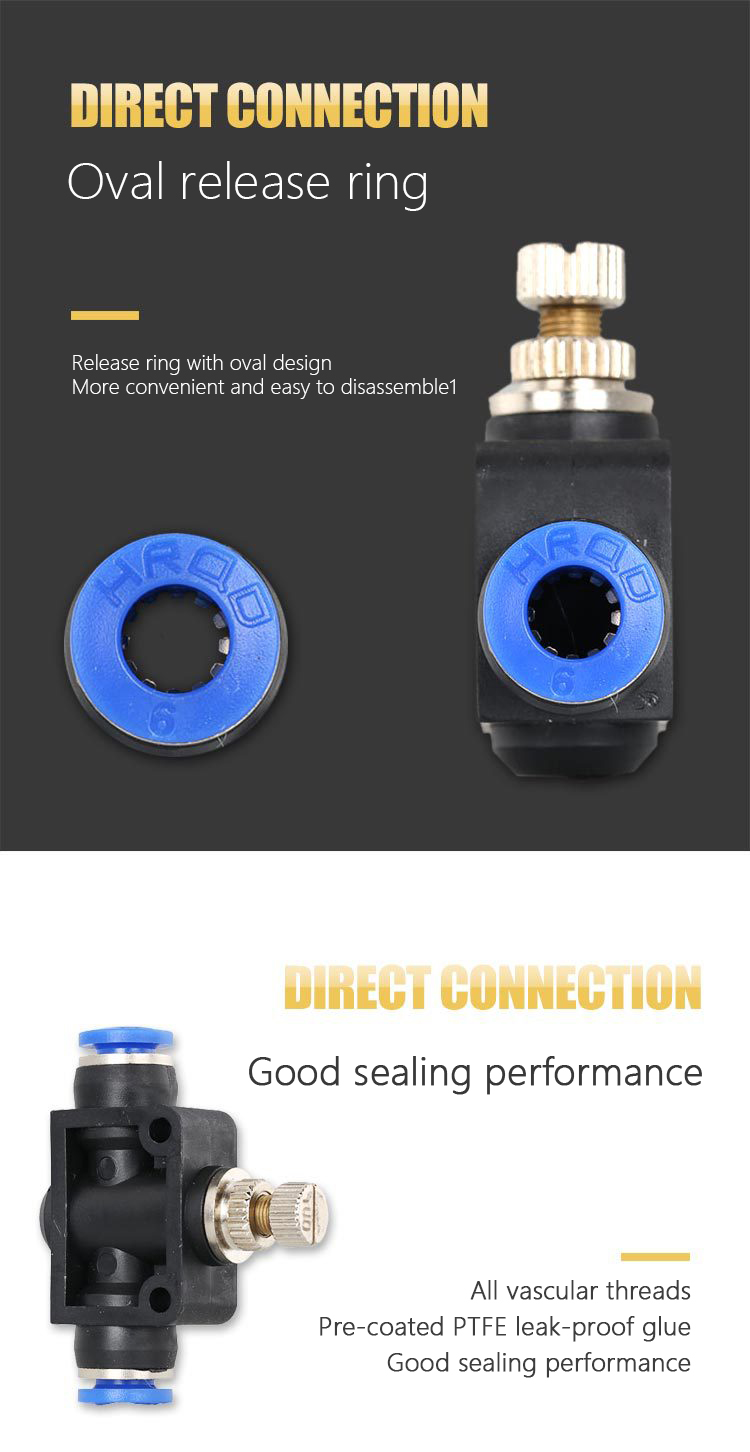

The tracheal connecting and dismounting buttons are designed to be easily connected and disassembled in an elliptical shape. For example, the elliptical button is limited by the space used, and a circular button can be specified when ordering. After connecting the pipe joint and the air pipe, the air pipe check must be taken to confirm whether the air pipe can be pulled or not, and it can be put into use without pulling.

 Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
