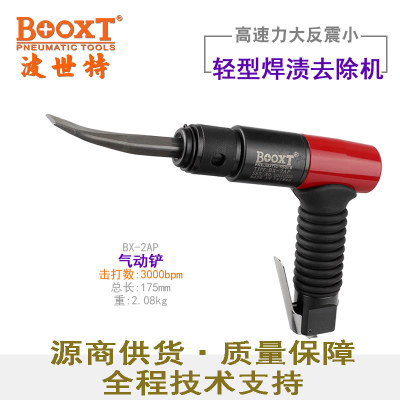

Imported No Order No. BX-2AP Customized processing No

Item No. BX-2AP Brand BOOXT Model BX-2AP

Function Trimming Piston diameter 22 (mm) Piston stroke 35 (mm)

Impact frequency 3000 (hz) Impact energy 3000 (j) Cylinder diameter 22 (mm)

Air inlet size 1/4 (inch) Suggested inner diameter of air pipe 8 (mm) Working pressure 0.4 (Mpa)

No-load speed 3000 (rmp) Full length 175 (mm) Power 0 (w)

Air consumption 0.20m3/min Weight 2.08 (kg) Applicable scope Metal foundry, construction company, etc.

Average air consumption 0.20m3/min Tool total length 175mm Tool net weight 2.08KG
