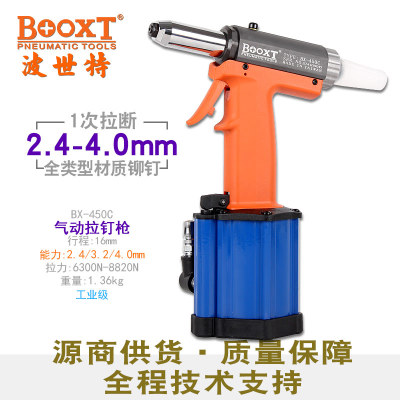

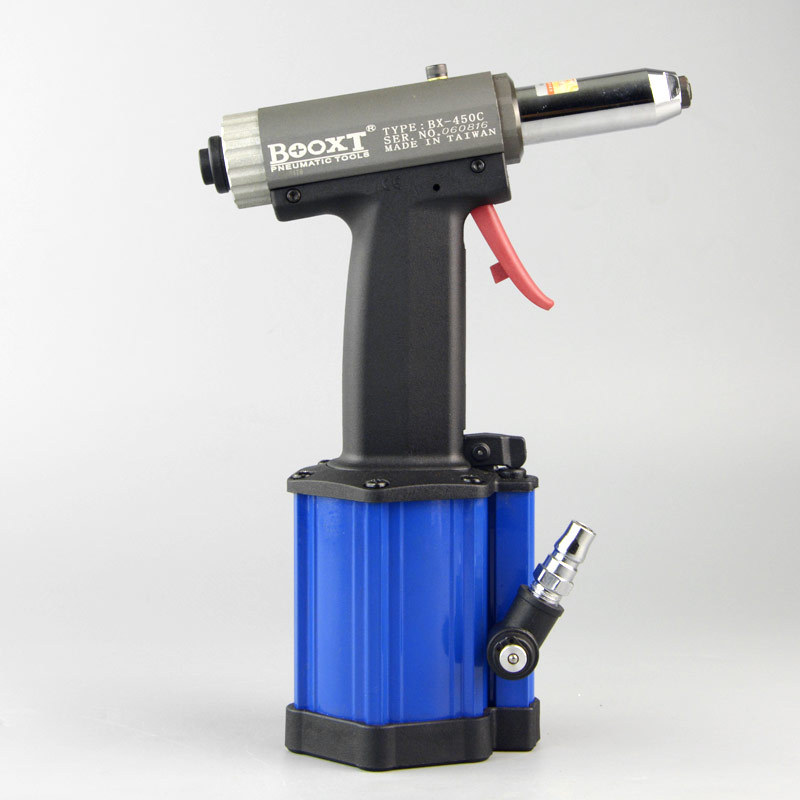

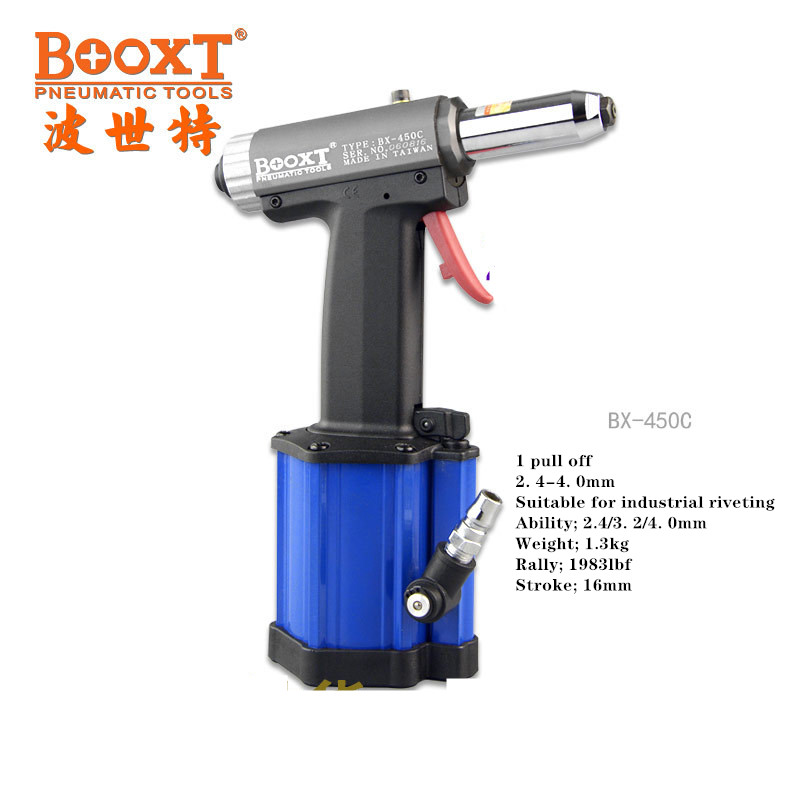

Imported No Order No. BX-450C Customized processing No

Item No. BX-450C Brand BOOXT Model BX-450C

Maximum pull stud size 4.0 (mm) Self-contained gun head size 2.4/3.2/4.0 (mm) Pull force 899 (kg)

Pull stud stroke 16 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.10m3/min Height 320 (mm)

Tool height 320 (mm) Total length 270 (mm) Applicable scope Suitable for all blind rivet fastening operations

Tool length 270mm Tool net weight 1.3 (kg) Whether it is a source of exclusive supply for cross-border export No
