Imported No Order No. BX-450 Customized processing No

Item No. BX-450 Brand BOOXT Model BX-450

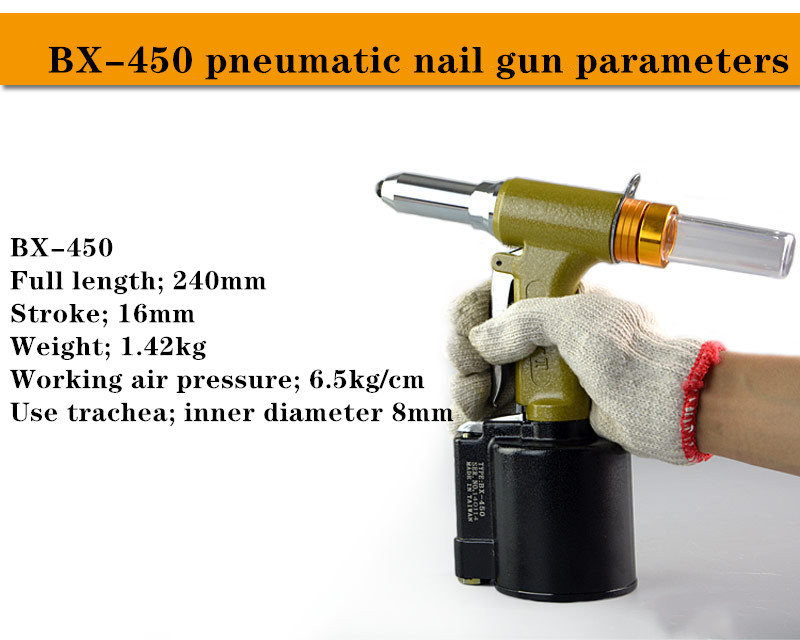

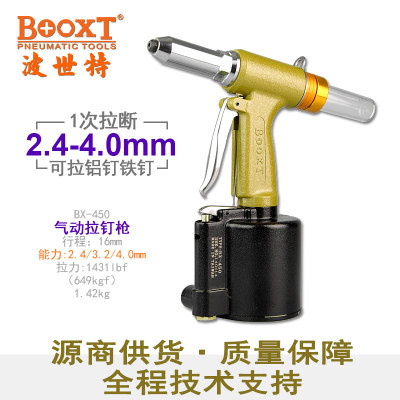

Maximum pull stud size 2.4, 3.2, 4.0 (mm) Self-contained gun head size 4.0 (mm) Pull force 1431 (kg)

Pull stud stroke 16 (mm) Air inlet size 1/4 (inch) Suggested inner diameter of trachea 12*8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 240 (mm)

Tool height 240 (mm) Total length 280 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 280mm Tool net weight 1.42 (kg) Whether it is a source of exclusive supply for cross-border export No
