Imported No Order No. BX-500AX Customized processing No

Item No. BX-500AX Brand BOOXT Model BX-500AX

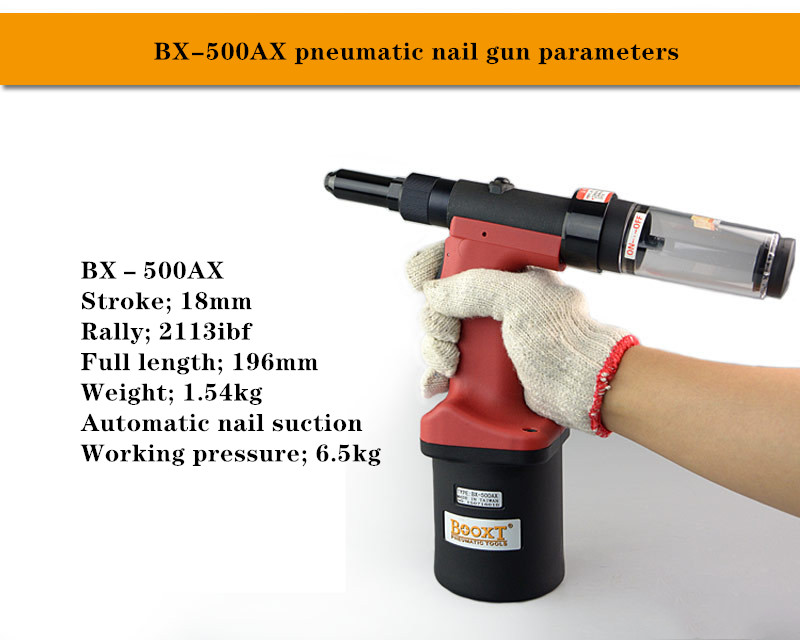

Maximum pull stud size 4.8 (mm) Self-contained gun head size 3.2/4.0/4.8 (mm) Pull force 958 (kg)

Pull stud stroke 18 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 280 (mm)

Tool height 280 (mm) Total length 270 (mm) Applicable scope Suitable for all kinds of blind rivet gun fastening operations.

Tool length 270mm Tool net weight 1.54 (kg) Whether it is a source of exclusive supply for cross-border export No
