Imported No Order No. BX-500B Customized processing No

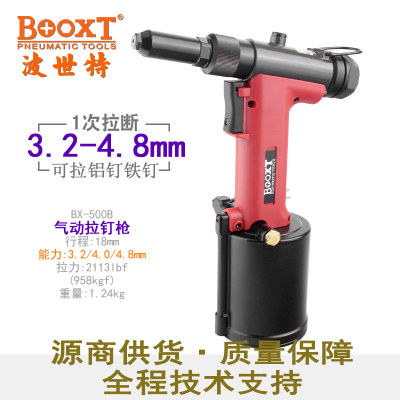

Item No. BX-500B Brand BOOXT Model BX-500B

Maximum pull stud size 4.8 (mm) Self-contained gun head size 4.8 (mm) Pull force 2113 (kg)

Pull stud stroke 18 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 265 (mm)

Tool height 265 (mm) Total length 280 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 280mm Tool net weight 1.24 (kg) Whether it is a source of exclusive supply for cross-border export No
