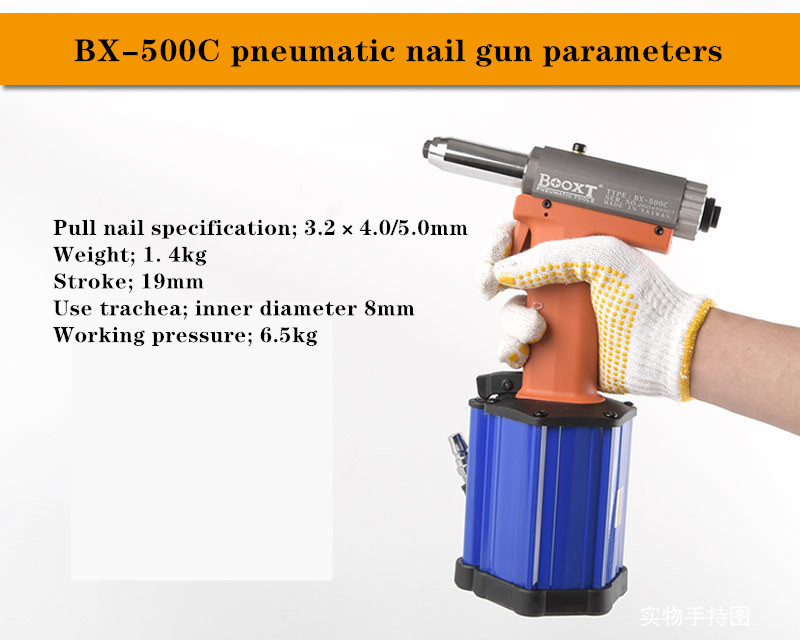

Imported No Order No. BX-500C Customized processing No

Item No. BX-500C Brand BOOXT Model BX-500C

Maximum pull stud size 5.0 (mm) Self-contained gun head size 3.2/4.0/5.0 (mm) Pull force 1470 (kg)

Pull stud stroke 19 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 320 (mm)

Tool height 320 (mm) Total length 270 (mm) Applicable scope Various types of blind rivets for firm operation

Tool length 270mm Tool net weight 1.40 (kg) Is it a source of exclusive supply for cross-border export
