Imported No Order No. BX-600 Customized processing No

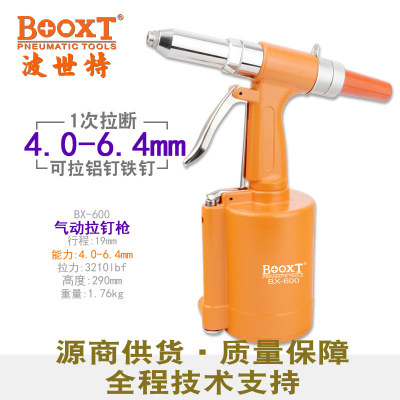

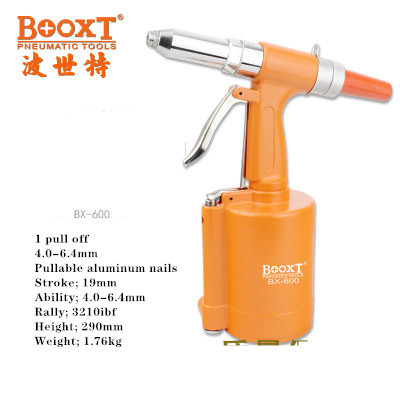

Item No. BX-600 Brand BOOXT Model BX-600

The maximum pull stud size 4.0-6.4 (mm) The size of the self-contained gun head 6.4 (mm) The pulling force 3210 (kg)

Pull stud stroke 19 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.21m3/min Height 290 (mm)

Tool height 290 (mm) Total length 270 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 270mm Tool net weight 1.76 (kg) Whether it is a source of supply for cross-border export
