Imported No Order No. BX-820GX Customized processing No

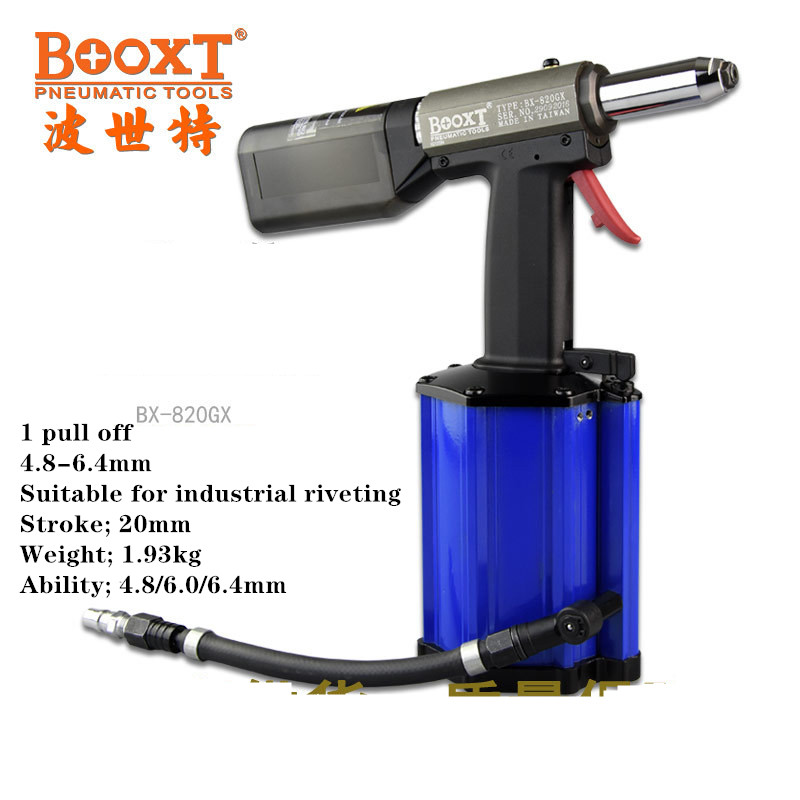

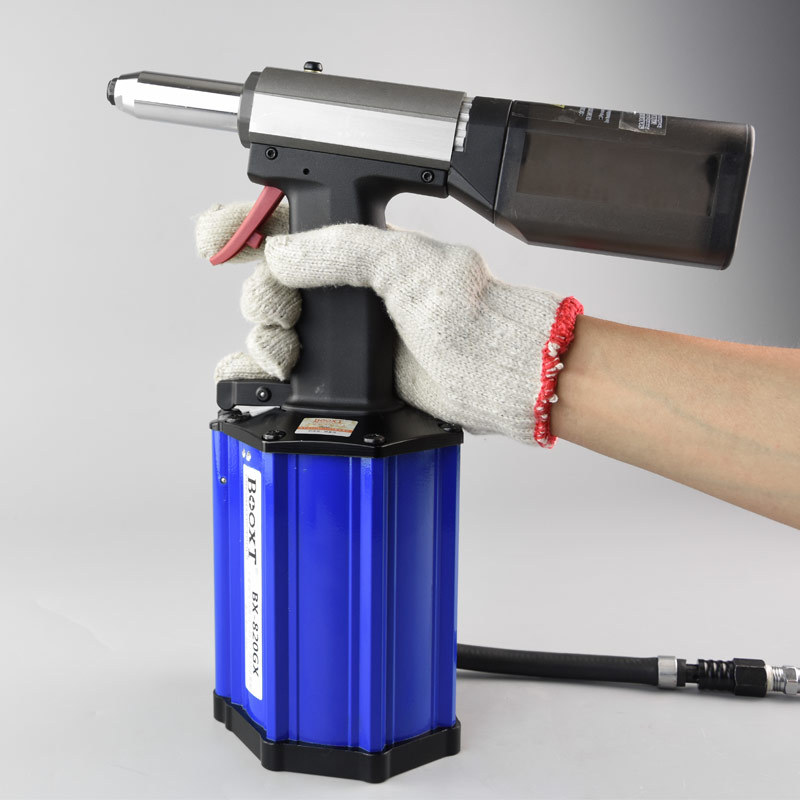

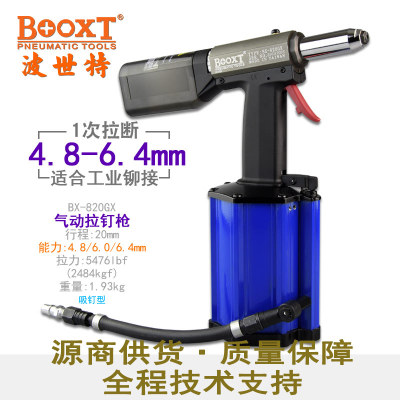

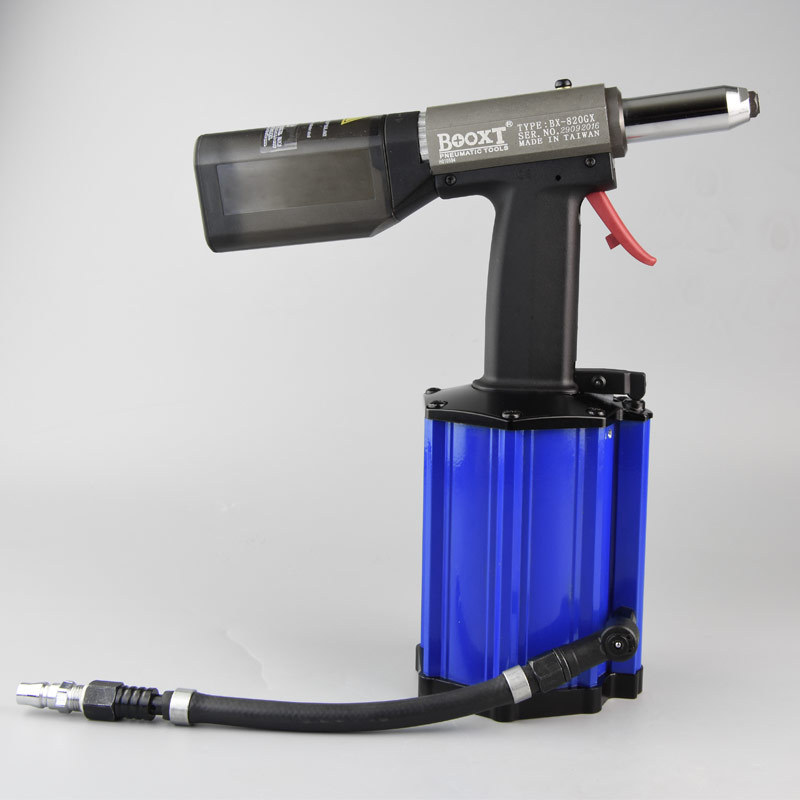

Item No. BX-820GX Brand BOOXT Model BX-820GX

Maximum pull stud size 6.4 (mm) Self-contained gun head size 4.8/6.0/6.4 (mm) Pull force 2484 (kg)

Pull stud stroke 20 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min Height 320 (mm)

Tool height 320 (mm) Total length 280 (mm) Applicable scope Used in industrial riveting operations, especially suitable for seahorse rivets and ordinary blind rivets of all materials

Tool length 280mm Tool net weight 2.1 (kg) Is it a source of exclusive supply for cross-border export?
