Imported No Order No. BX-1000D Customized processing No

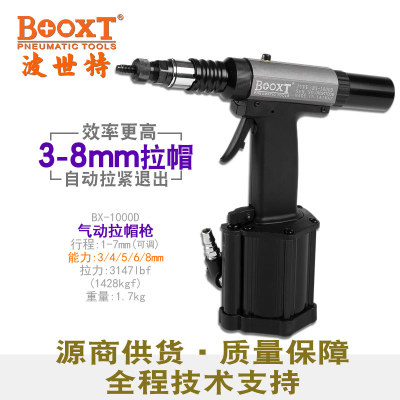

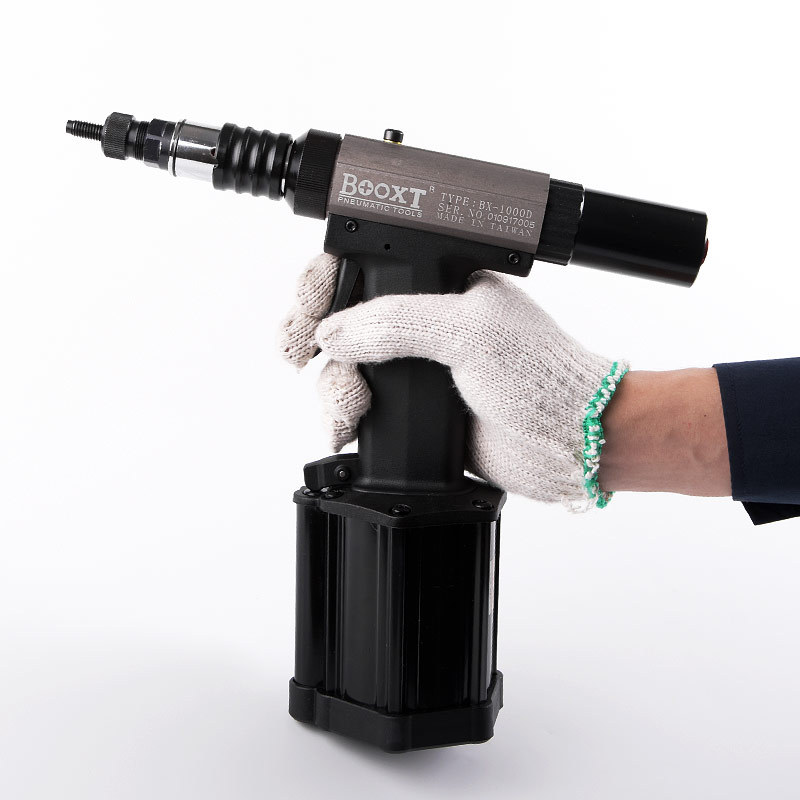

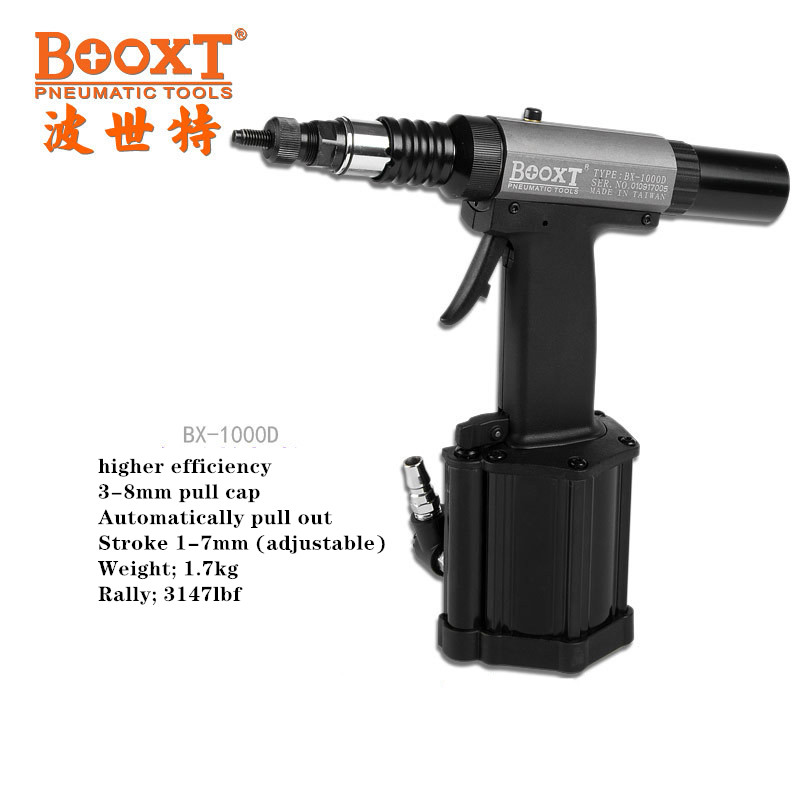

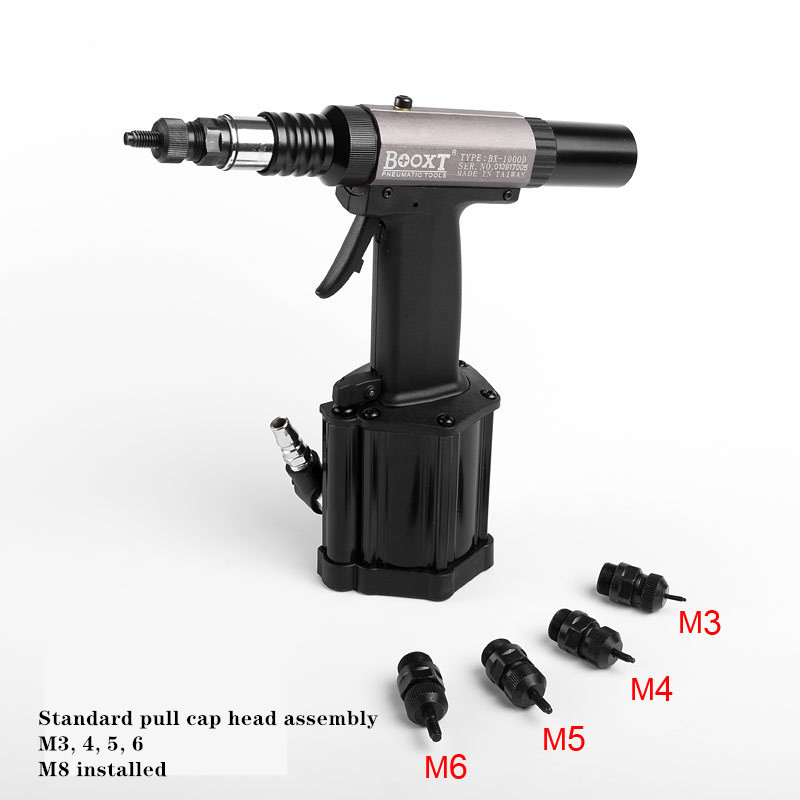

Item No. BX-1000D Brand BOOXT Model BX-1000D

Required air pressure 0.65 (MPa) Rivet tension 1428 (kgs) Maximum stroke 7 (mm)

Air inlet size 1/4 (inch) Average air consumption 0.4m3/min Weight 1.65 (kg)

Scope of application Riveting operation of pull caps (studs) of various materials Working pressure 0.65Mpa Dimensions 380×320mm

Suggested trachea inner diameter 8mm tool length 380mm tool net weight 1.7 (kg)

Whether it is a source of exclusive supply for cross-border export
