Imported No Order No. BX-1000 Customized processing No

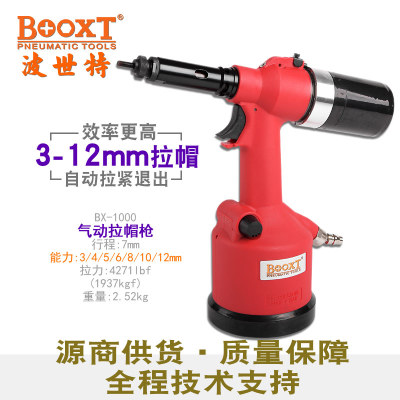

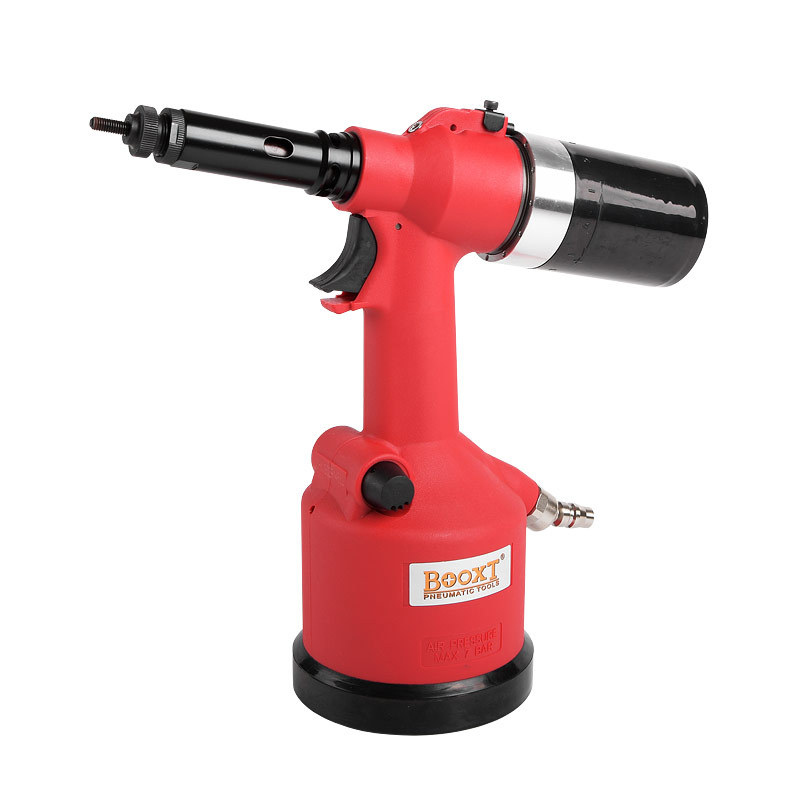

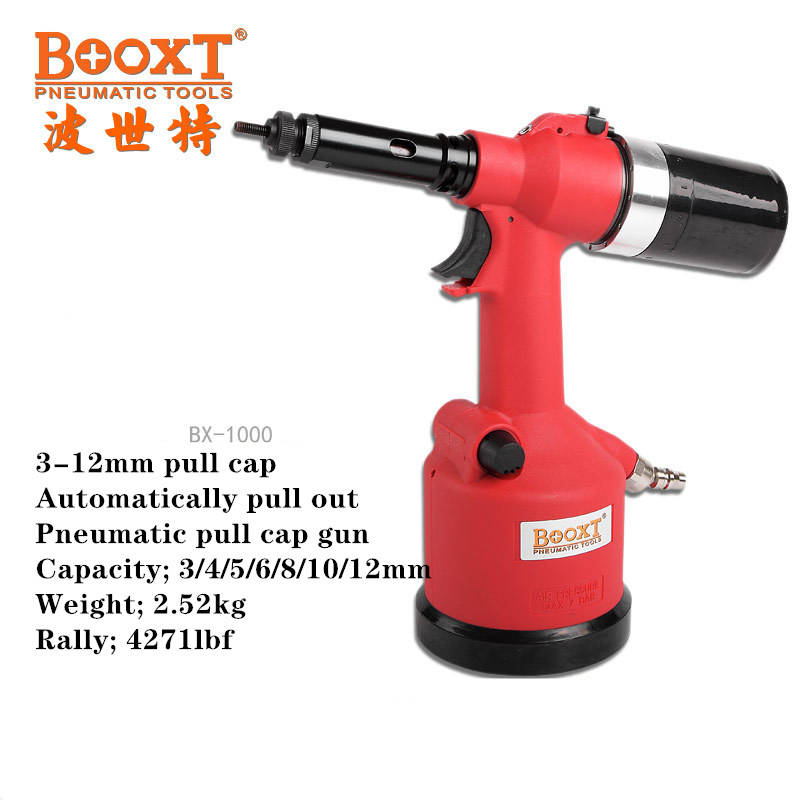

Item No. BX-1000 Brand BOOXT Model BX-1000

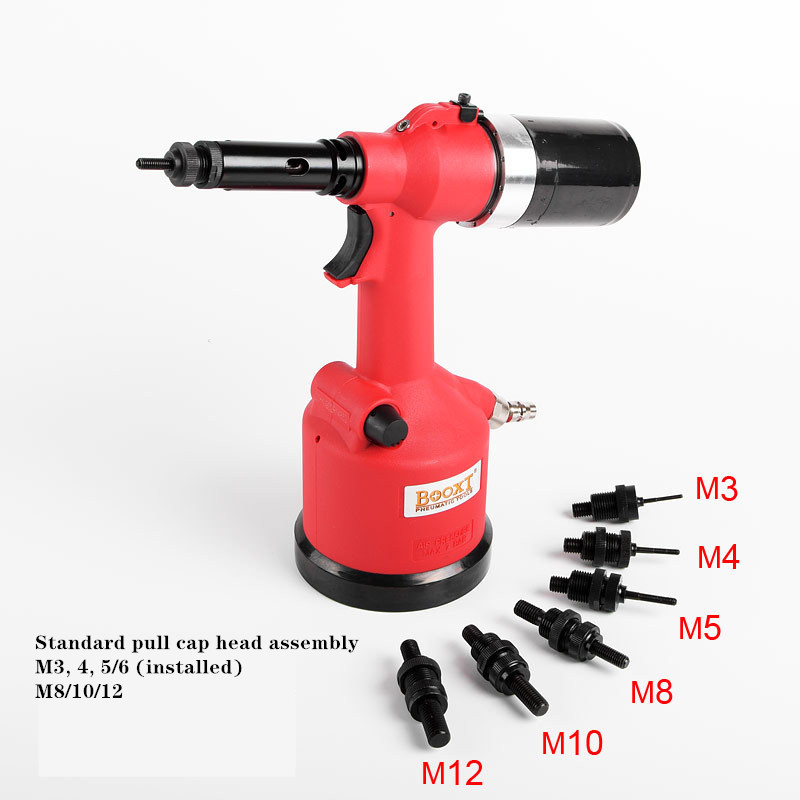

Maximum pull stud size 12 (mm) Self-contained gun head size 3/4/5/6/8/10/12 (mm) Pull force 1937 (kg)

Pull stud stroke 1-7 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.63 (Mpa) Average air consumption 0.3 cubic meters per minute Height 280 (mm)

Tool height 280 (mm) Total length 300 (mm) Applicable scope Riveting operations of hardware, plastic, wood products, etc.

Tool length 300×280mm (length/height) Tool net weight 2.52 (kg) Is it a source of exclusive supply for cross-border export
