Imported No Order No. LG-808 Customized processing No

Item No. LG-808 Brand BOOXT Model LG-808

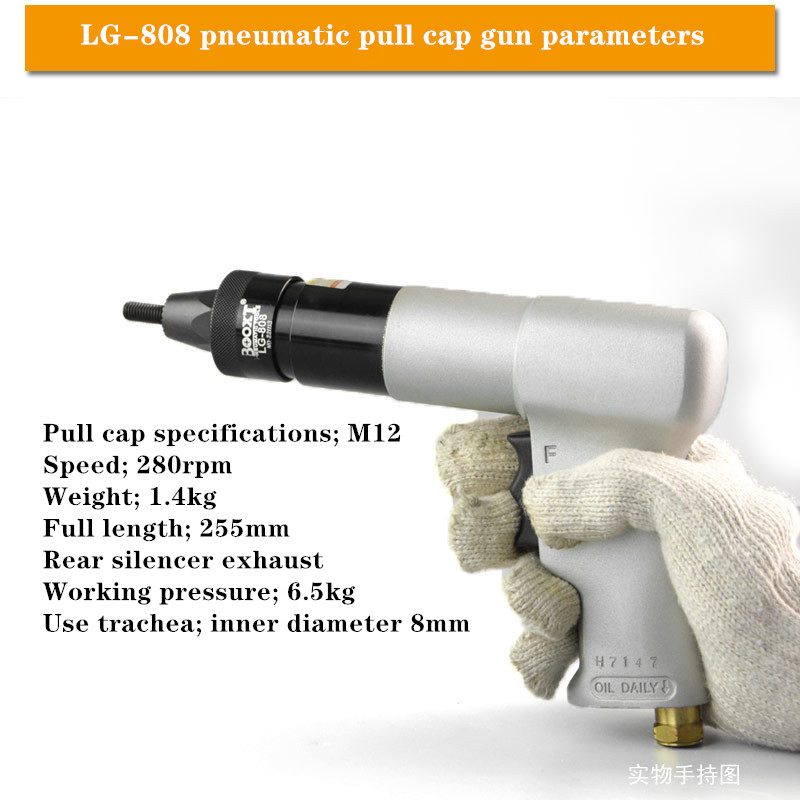

Maximum pull stud size M12 (mm) Self-contained gun head size M12 (mm) Pull force 2600 (kg)

Pull stud stroke 6 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.55m3/min Height 170 (mm)

Tool height 170 (mm) Total length 255 (mm) Scope of application Suitable for industrial riveting operations such as hardware and plastic products.

Tool length 255mm Tool net weight 1.4 (kg) Whether it is a source of exclusive supply for cross-border export No
