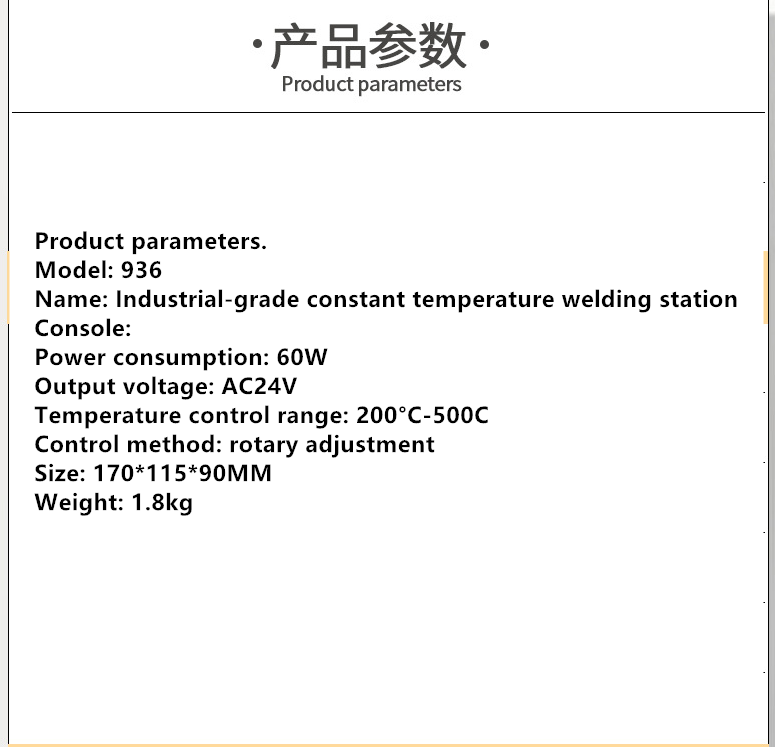

Item No. / Model 936 Soldering Station

Soldering station type Constant temperature soldering station Temperature adjustment range 200-480 (℃) Applicable scope Electronic product welding

Input voltage 24 (V) Output voltage 24 (V) Fuse Yes

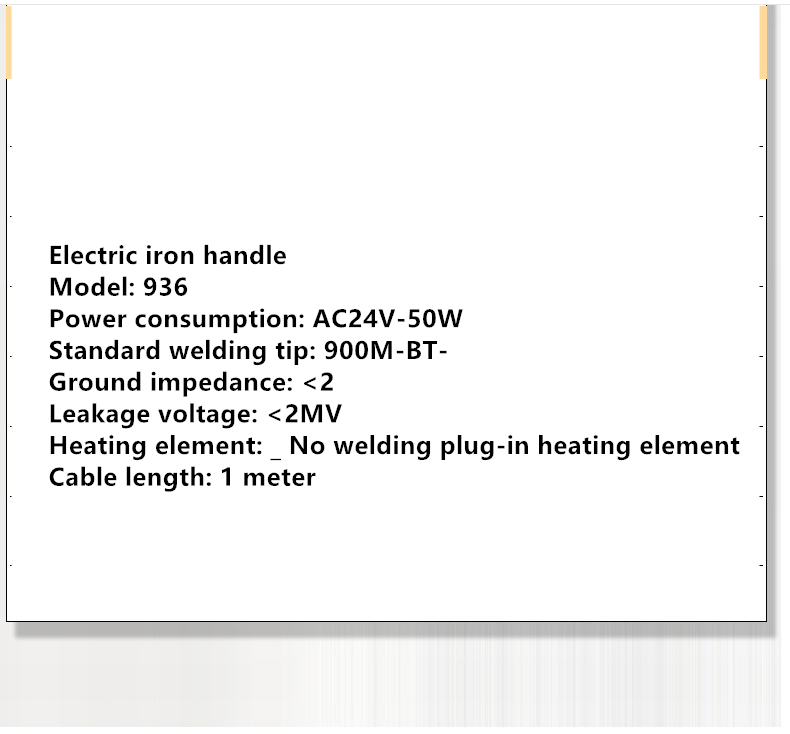

Welding tip to ground impedance 2 (Ω) Shell surface impedance 2 (Ω) Welding tip to ground voltage 24 (mV)

Power 60 (W) Dimensions: Width 120 mm, Height 93 mm, Depth 170 mm (mm) Heating time 30

Net weight 1.7 (kg) Set Bailiwei Constant Temperature Soldering Station 936 Is it a source of exclusive supply for cross-border export?

Power type Manual drive type Electric heating series Soldering station
