Order number 05480 Item No. 05480

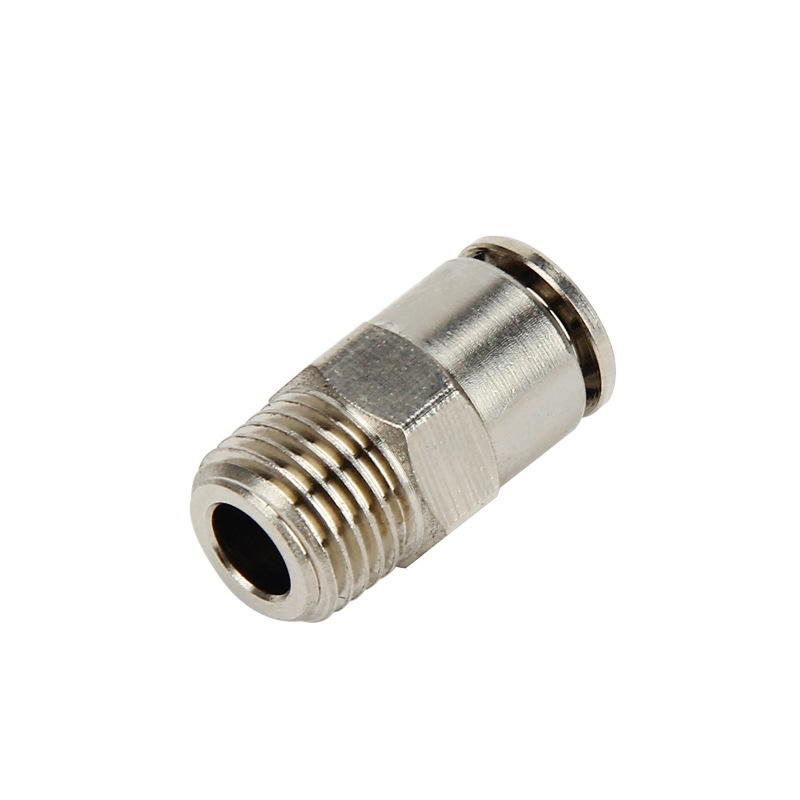

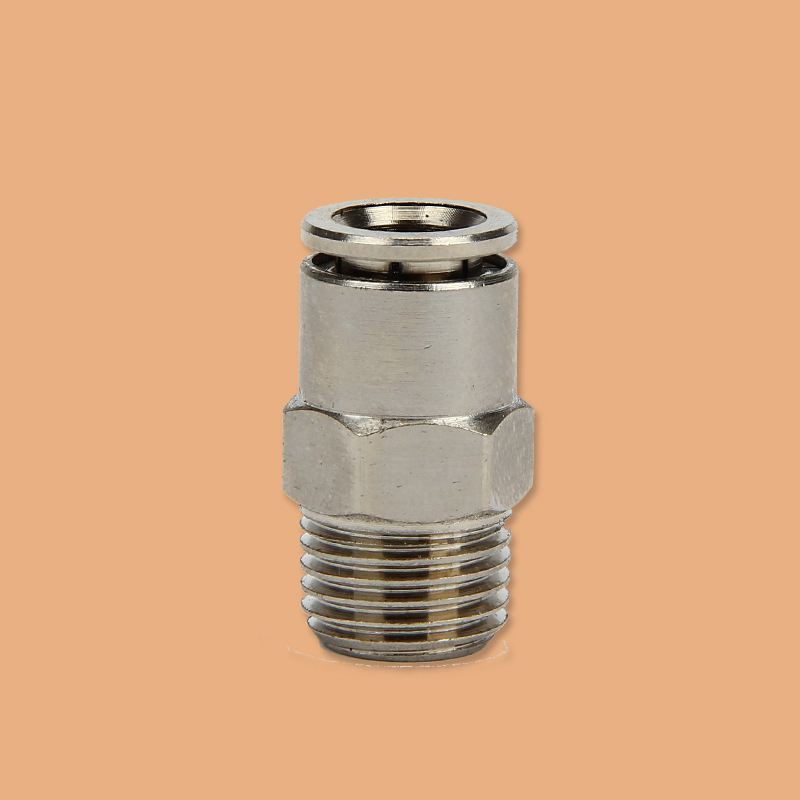

Model PC Type Metal Connector
Material Copper nickel plating Scope of application Pneumatic temperature resistance 60 (°C)
Withstand voltage 1 (MPa) Installation form 4-M5 (takes 4 threads M5), 4-01 (takes 4 threads 1 minute), 4-02 (takes 4 threads 2 points), 6-M5 (takes 6 threads M5), 6-01 (takes 6 threads 1 minute), 6-02 (takes 6 threads 2 points), 6-03 (takes 6 threads 3 points), 6-04 (takes 6 threads 4 points), 8-01 (takes 8 Thread 1 point), 8-02 (takes 8 threads 2 points), 8-03 (takes 8 threads 3 points), 8-04 (takes 8 threads 4 points), 10-01 (takes 10 threads 1 minute), 10 -02 (takes 10 threads 2 points), 10-03 (takes 10 threads 3 points), 10-04 (takes 10 threads 4 points), 12-01 (takes 12 threads 1 minute), 12-02 (takes 12 threads) 2 points), 12-03 (takes 12 threads and 3 points), 12-04 (takes 12 threads and 4 points), 14-03 (takes 14 threads and 3 points), 14-04 (takes 14 threads and 4 points), 16- 02 (takes 16 threads and 2 points), 16-03 (takes 16 threads and 3 points), 16-04 (takes 16 threads and 4 points), 16-06 (takes 16 threads and 6 points), and has a copper-nickel connector PC. 304 stainless copper joint PC, 316 stainless copper joint PC (mm)
